Pashley Roadfinder E
Pashley Roadfinder E
Combining sublime quality and whisper quiet power - go further and enjoy every mile on the Roadfinder E.
We bring you the UK’s first electrically assisted road bike hand-crafted from legendary Reynolds steel, for that high-end ride feel that simply cannot be matched.
With a 55Nm Mahle X20 rear hub motor and weighing just 13kgs complete, the Roadfinder E is a multi-surface, multi-season machine, here to help you ride higher, further and easier than ever before.
Hand-crafted in Britain, for a lifetime of adventure on the road ahead.
This isn’t just an e-bike, this is a Pashley e-bike.
We have some of these in store to view and will soon have demonstrators in store - call us on 01789 290703, email or use our test ride booking form HERE.
IMPORTANT: Please read our Delivery and Returns information HERE.
Razor sharp handling meets all day ride comfort with the Roadfinder E.
A carefully selected blend of Reynolds double-butted steel tubes and 3D printed stainless steel lugs and other frame elements are carefully brazed by hand and paired with a wide clearance, tapered carbon fibre fork to create an exciting platform tailored to riding fast and covering plenty of miles in comfort and with ease. The Roadfinder E has been built with a specification to tackle any road adventure with clearances for multi-surface and multi-season riding.
An oversized down tube adds exceptional stiffness to the frame whilst subtly concealing the internal 250Wh battery with an extra range extender also available. A T47 bottom bracket adds further support to the centre of the frame whilst also providing ample space for internal cable routing. The Mahle IWOC controller is seamlessly brazed into the top tube giving you the ability to easily adjust your power setting.
Building the drive system into the Roadfinder E, we've preserved the clean lines of a modern classic road bike and created a stiff, agile yet comfortable frame that delivers as a performance machine with or without the assistance engaged.
A whisper quiet and dynamic Mahle X20 rear hub motor creates a balanced feel with seamlessly integrated power delivery that puts you in control. The X20 motor mirrors your input, working with you rather than dominating the ride. Producing 55Nm of assistance from a hub that weighs just 1.9kg for a fully built bike at only 13kgs, the Roadfinder E is as enjoyable to ride even with the assistance switched off.
Outfitted with a choice of drivetrain, you can choose from the reliable Shimano 105 mechanical groupset with lightweight alloy wheels to the superfast wireless Shimano 105 Di2 or Ultegra Di2 gearing, paired with aerodynamic 36mm hand-laced in the UK Parcours Alta carbon fibre wheels all combined with confidence inspiring hydraulic disc brakes.
To perfectly balance performance and comfort, the Roadfinder is finished with Zipp 80 Ergo handlebars, Zipp Service Course stem and a 27.2mm Zipp Service Course seatpost (shimmed down from 31.6mm for extra compliance and dropper post compatibility), topped with the all-weather Brooks C15 Cambium saddle.
The Roadfinder E has been designed and built to push you to conquer the hills and enjoy every mile.
Specification
Gears (Shimano 105): 11-36T cassette / 50/34 crankset

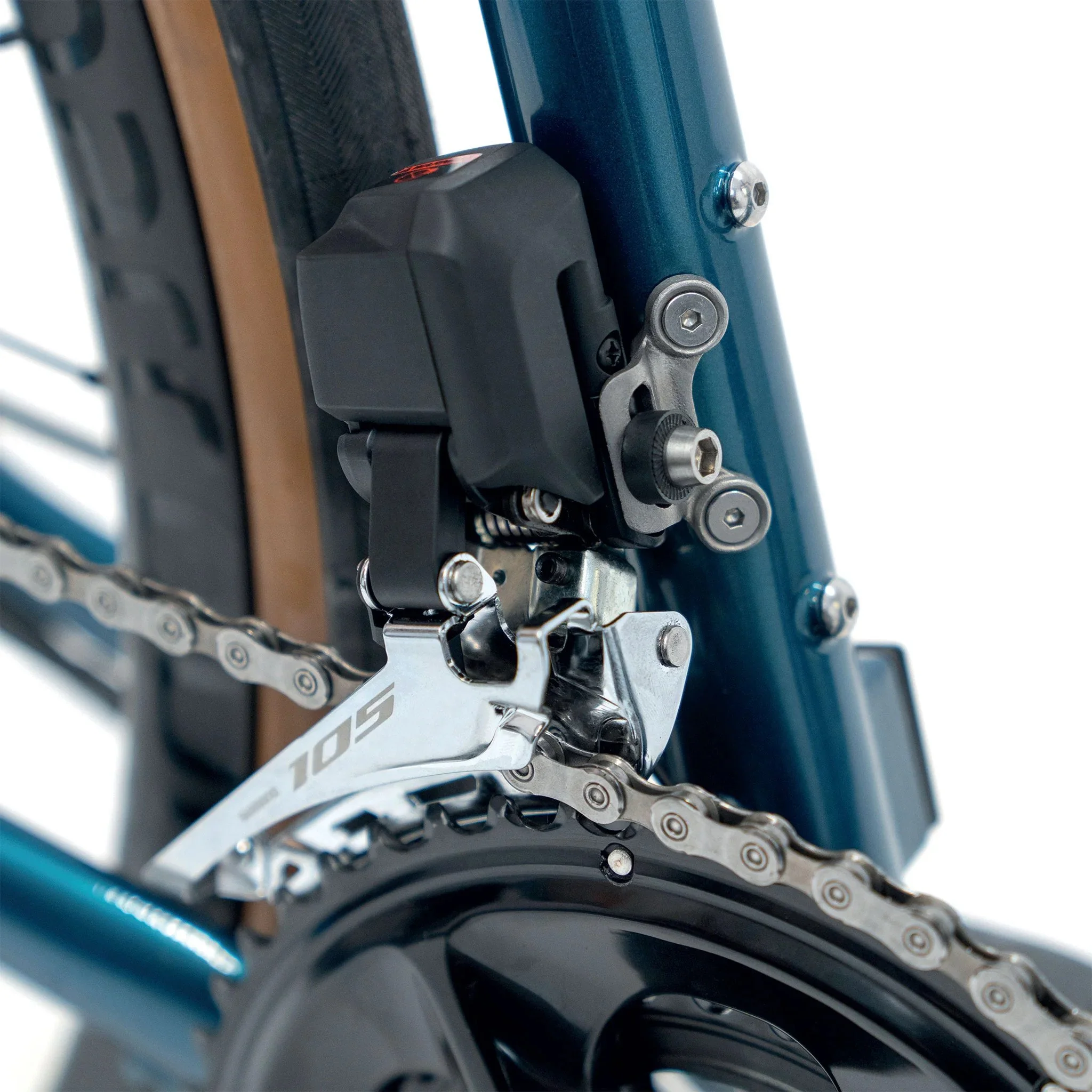

Gears (Shimano 105 Di2 ): 11-36T cassette / 50/34 crankset
Gears (Shimano Ultegra Di2): (11-34T cassette / 50/34 crankset
Frame: Reynolds 853 double butted tubing. Additive manufactured (3D printed) elements including our signature seatstay junction, HMI mount and charge port. Tapered head tube with integrated headset. Unique Pashley Thru-Axle dropouts. x2 Bottle cage mounts. E-Coated and wet painted.
Fork: Full Carbon Fork, Tapered Steerer 1,1/2, 1,1/8. 12x100 Thru Axle.
Saddle: Brooks Cambium C15 saddle
Seatpost: Zipp Service Course 27.2mm post
Handlebar: Zipp Ergo 80 drop handlebars 42cm, Zipp Service Course Stem
Brakes: Shimano 105 or Ultegra Flat mount Hydraulic Disc Brakes. 160mm rotors
Wheels (Shimano 105 mechanical Spec): 700c Aluminium Rim (23mm internal width, Tubeless ready) Shimano RS470 front hub and Mahle X20 rear hub using Sapim double butted stainless spokes (28H)
Wheels (Shimano 105 or Ultegra Di2 spec): Parcours Alta 36mm deep, 24mm wide carbon fibre tubeless ready rims - Parcours Gravel disc hub, Sapim CX-RAY J-bend spokes.
Tyres: Panaracer Gravel King slick 35c. gumwall side
Mudguards: Optional Extruded aluminium mudguard colour matched to frameset
Drive System: Mahle X20 electric assist 55Nm rear hub motor, 250Wh internal battery.
Battery: 250Wh rechargeable battery integrated into the specially formed downtube of the frame.
Griptape: Brooks Cambium all weather rubber bar tape
Weight (105): 13.77kg
Weight (105 Di2): 13.95kg
Weight (Ultegra Di2): 13.17kg
