Pashley Roadfinder XE
Pashley Roadfinder XE
Built for the explorer in all of us, the Roadfinder XE is your invitation to tackle the unknown, conquer the climbs, and savour every mile—on or off the road.
The Roadfinder XE is the result of our relentless desire to make fun and beautifully versatile bicycles. From Gravel to woodland, Tarmac to fire-roads and everything in between, the XE devours the miles and comes back for more.
We have some of these in store to view and will soon have demonstrators in store - call us on 01789 290703, email or use our test ride booking form HERE.
IMPORTANT: Please read our Delivery and Returns information HERE.
The Roadfinder XE - the e-bike for any road... even when the road turns to wilderness.
A versatile gravel bike that seamlessly blends our tradition for the finest UK craftsmanship with the latest in cutting-edge technology. Hand-brazed, TIG welded and silver soldered Reynolds 725, 631 and 525 double-butted steel tubes meet 3D-printed stainless-steel lugs, creating a durable yet refined frame. Paired with wide clearance, carbon fibre fork with tapered steerer, the XE is ready to explore every corner of the map — whether it's winding forest trails, rugged backroads, or long stretches of tarmac.
The Roadfinder XE’s geometry is carefully designed for stability and agility, while ample clearance accommodates knobbly 45c gravel tyres or road tyres and mudguards, ensuring year-round capability on all terrains. The oversized down tube delivers exceptional frame stiffness and subtly hides the 250Wh Mahle battery with an optional range extender also available, while the T47 bottom bracket enhances support and ensures clean, internal cable routing for an uncluttered aesthetic.

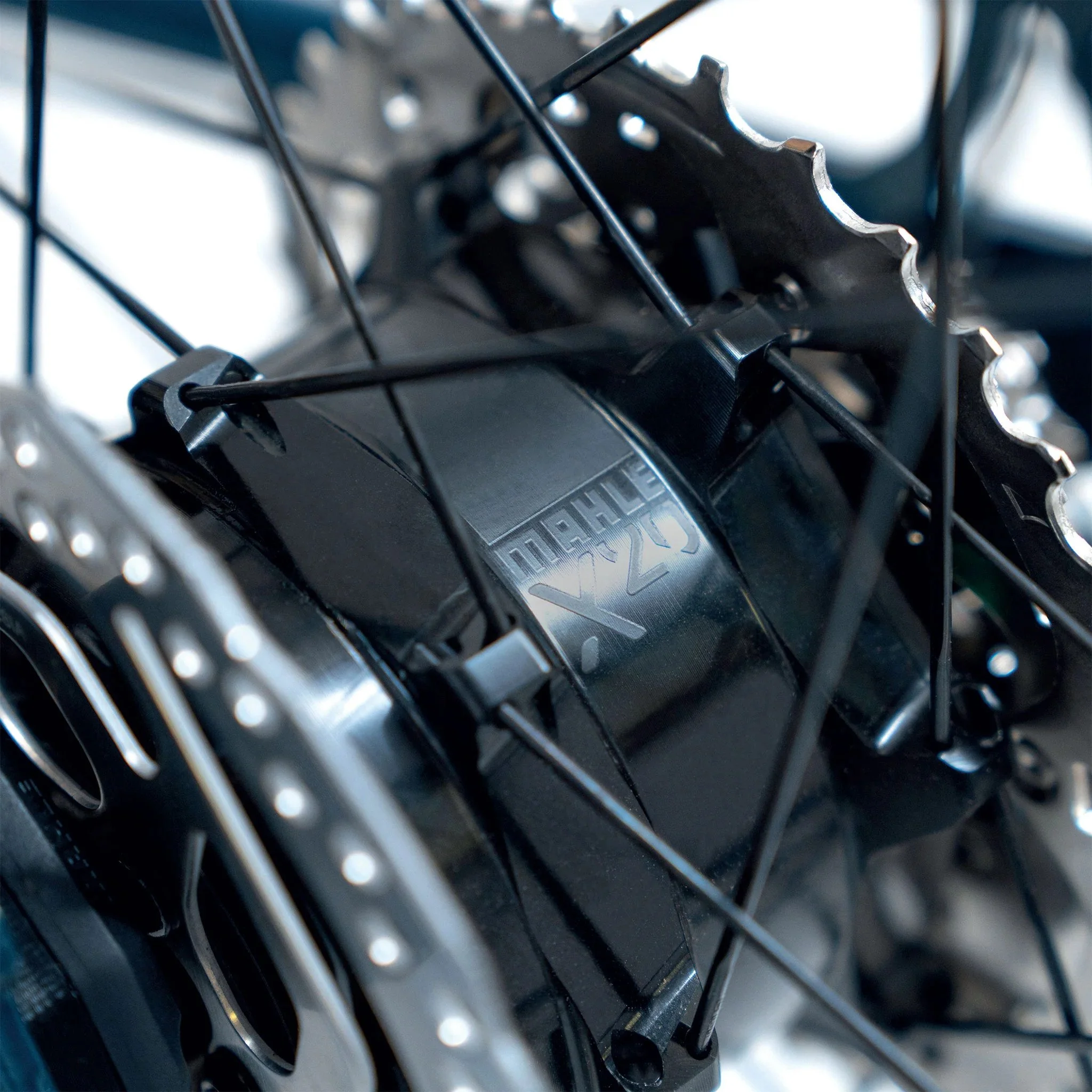

At its core, the Roadfinder XE is an adventurer’s dream. Equipped with a whisper-quiet and dynamic Mahle X20 rear hub motor, it offers up to 55Nm of smooth, intuitive assistance that complements your input rather than overpowering it. The lightweight (1.9kg) motor is laced into the rear wheel, ensuring the bike keeps a clean, streamlined look. Whether powered or unassisted, the Roadfinder XE’s performance-focused frame and 13kg weight make every ride a joy.

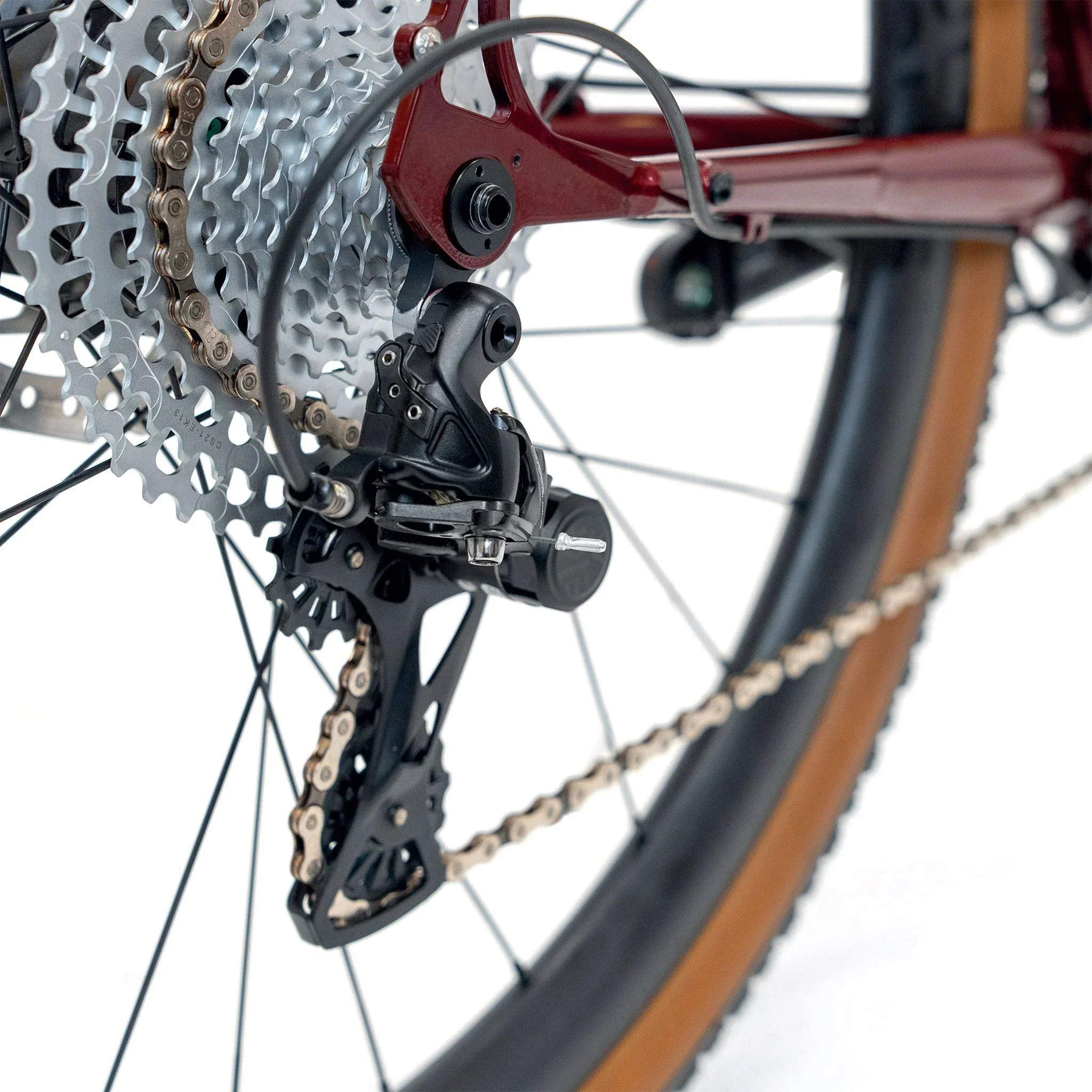

Riders can select their ideal drivetrain setup, from the dependable Shimano GRX 610 mechanical groupset with durable alloy wheels to high-performance Campagnolo Ekar or SRAM Rival AXS featuring wireless shifting, paired with hand-laced, aerodynamic 50mm carbon fibre wheels. All gear systems are driven by a 40T single ring front chainset with a narrow / wide tooth pattern for perfect off-road chain retention with an ultra-wide ratio rear cassette, whilst confidence-inspiring 160mm hydraulic disc brakes deliver control and stopping power, no matter the conditions.
Balancing comfort and performance, the Roadfinder XE features Zipp XPLR 70 handlebars, a Zipp Service Course stem, and a compliant 27.2mm Zipp Service Course seatpost. Topping it off is the all-weather Brooks C15 Cambium saddle, ready for long days on or off the road. Future-proofing the XE, we've built the frame with a 31.6mm dropper post compatible seat tube, ensuring you can tailor the bike to handle your adventures.
Specification
Gears (Shimano GRX 610 ): 40-10t cassette / 45t crankset
Gears (Campagnolo Ekar): 40-10t cassette / 44t crankset
Gears (SRAM Rival AXS wireless electronic): 40-10t / 44t crankset

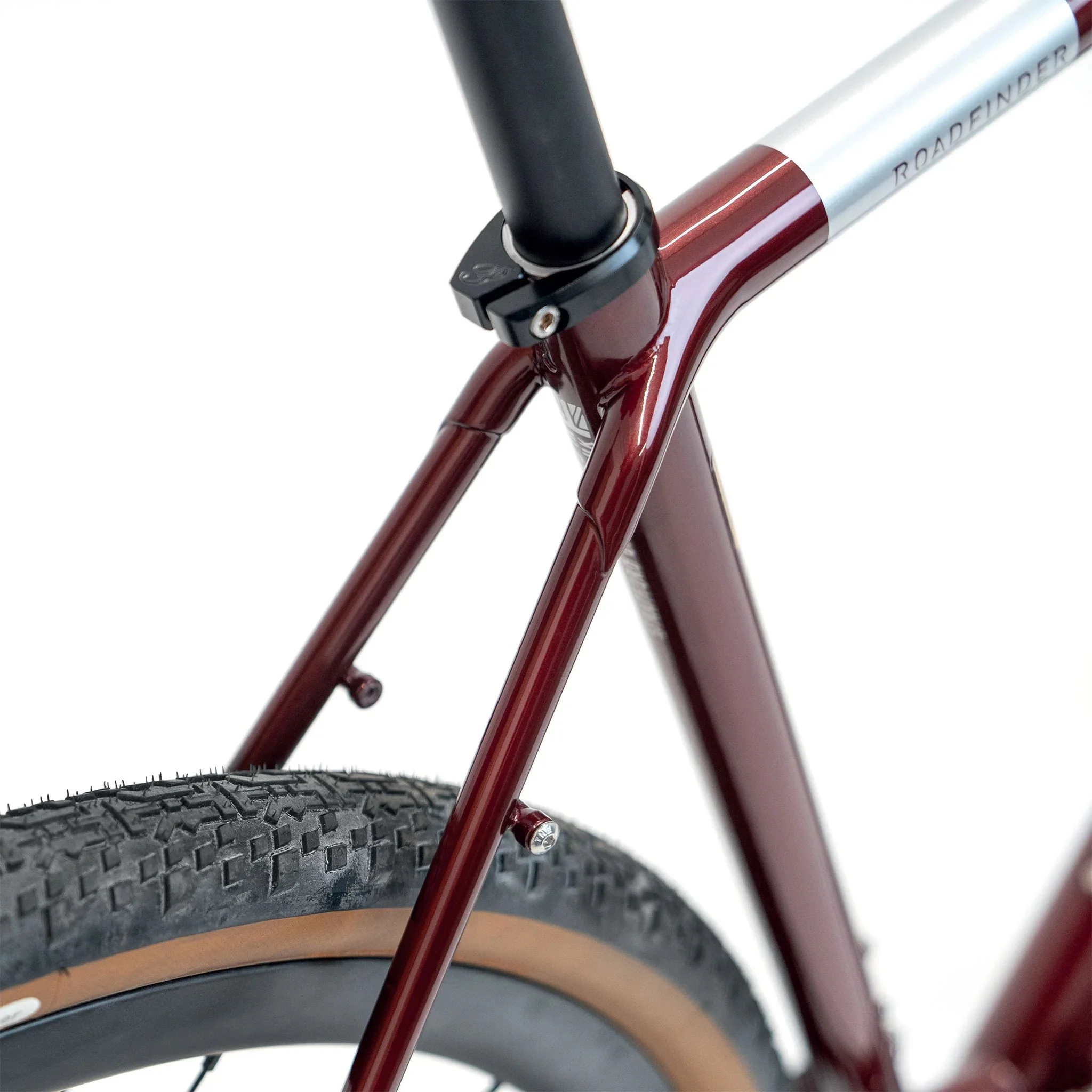

Frame: Reynolds 853 double butted tubing. Additive manufactured (3D printed) elements including our signature seatstay junction, HMI mount and charge port. Tapered head tube with integrated headset. Unique Pashley Thru-Axle dropouts. x2 Bottle cage mounts. E-Coated and wet painted.
Fork: Full Carbon Fork, Tapered Steerer 1,1/2, 1,1/8. 12x100 Thru Axle.
Saddle: Brooks Cambium C15 saddle
Seatpost: Zipp Service Course 27.2mm post
Handlebar: Zipp XPLR 70 gravel specific drop handlebars 42cm
Stem: Zipp Service Course Stem

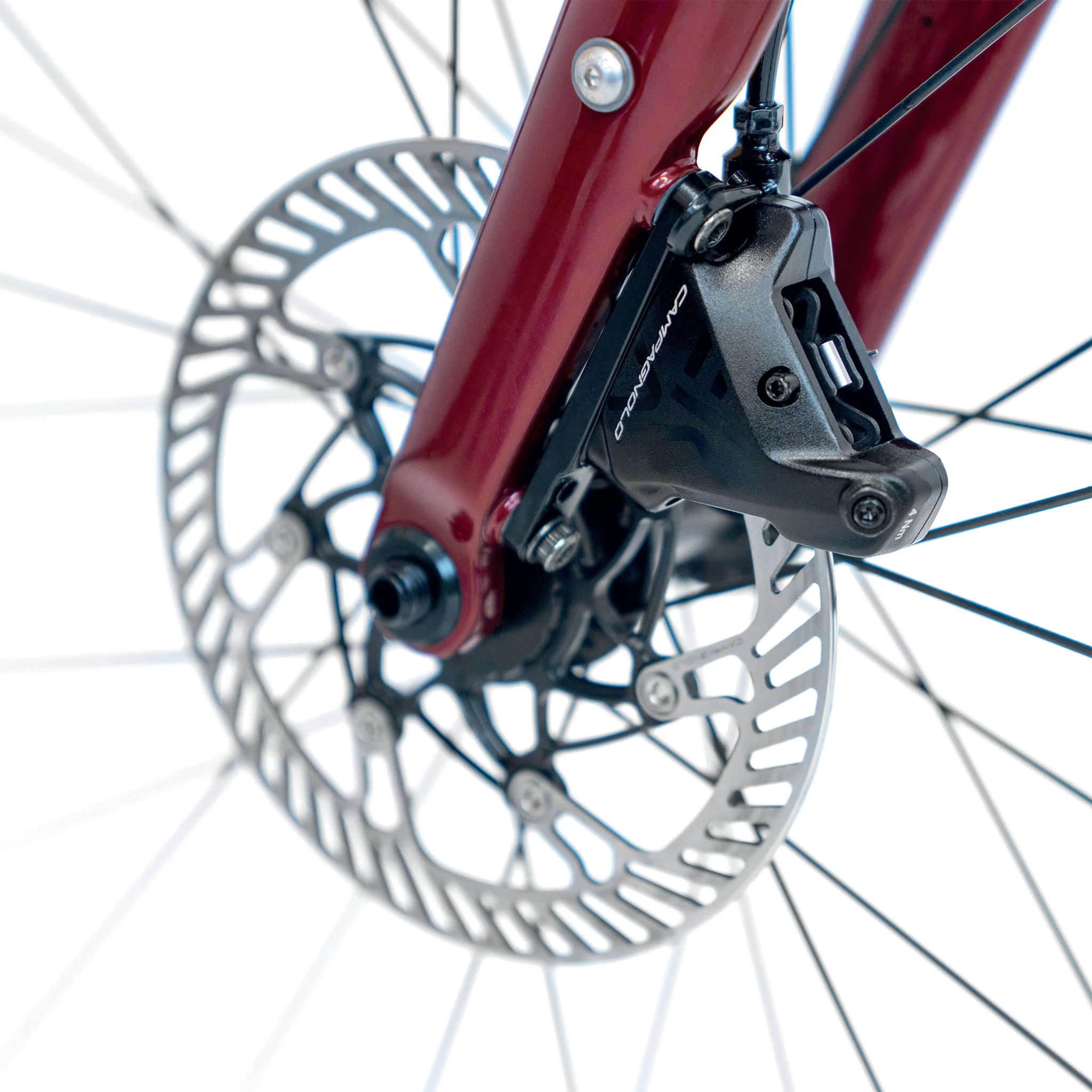

Brakes: Shimano, SRAM or Campagnolo Flat mount Hydraulic Disc Brakes. 160mm rotors
Wheels (Shimano GRX spec): 700c Aluminium Rim (23mm internal width, Tubeless ready) Shimano RS470 hubs Sapim double butted stainless spokes (28H)
Wheels (Campagnolo and SRAM spec): Parcours Alta 36mm deep, 24mm wide carbon fibre tubeless ready rims - Parcours Gravel disc hubs, Sapim CX-RAY J-bend spokes.
Tyres: Panaracer Gravel King slick 35c. gumwall side
Mudguards: Optional Extruded aluminium mudguard colour matched to frameset (compatible with slick tyre only)
Griptape: Brooks Cambium all weather rubber bar tape
Drive System: Mahle X20 electric assist 55Nm rear hub motor, 250Wh internal battery.
Battery: 250Wh rechargeable battery integrated into the specially formed downtube of the frame.
Griptape: Brooks Cambium all weather rubber bar tape
Weight (105): 14.4kg
Weight (105 Di2): 14.3kg
Weight (Ultegra Di2): 13.45kg
